Contextual Fit

In this project, we were tasked to design an addition to a previously existing home. The purpose of this assignment is to further understand the surroundings, the already existing home, and how its components interact with one another. We then used this analysis to form our addition. The model we used for this project was the Long Island Sound "Smith House" designed by Richard Meir in 1965.


Narrative



The smith family recently bought the smith house and as they are a relatively large family, they are looking to have an extension added to give them and their children more privacy, so as not to feel overbearing. The smith family is an artistically inclined family so they would like to commission the area to serve as a place of inspiration for the family that promotes creativity and the creative process for art & music. They would like the family room to also serve as a place to present their projects and converse about them.

Hierarchy



Family Room




Sorting of Space




Public

  • Exercise Room

  • Family Room

  • Formal Out Door Area




Private

  • Master Bedroom

  • Master Bathroom




Loud

  • Exercise Room

  • Family Room

  • Formal Out Door Area




Quiet

  • Master Bedroom

  • Master Bathroom




Group

  • Exercise Room

  • Family Room

  • Formal Out Door Area




Individual

  • Master Bedroom

  • Master Bathroom




Original Floor Plans



Screenshot 2022-11-28 093317.png

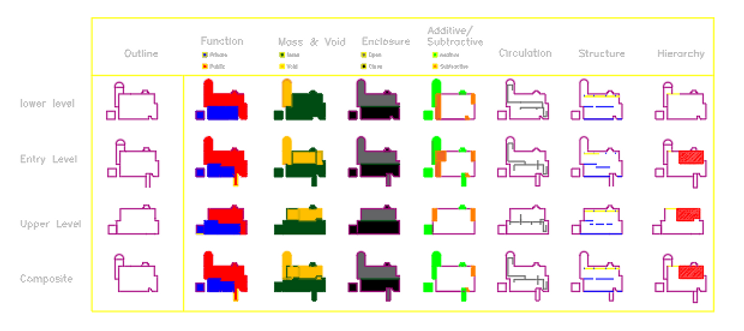

Contextual Analysis



Screenshot 2022-11-21 104311.png

Hierachy

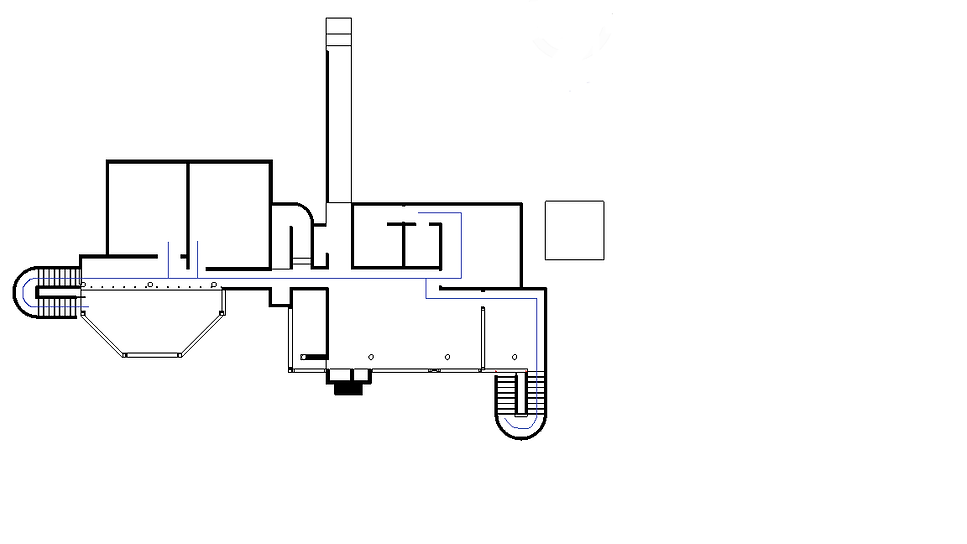

Circulation




Column





Girder




Bearing Wall

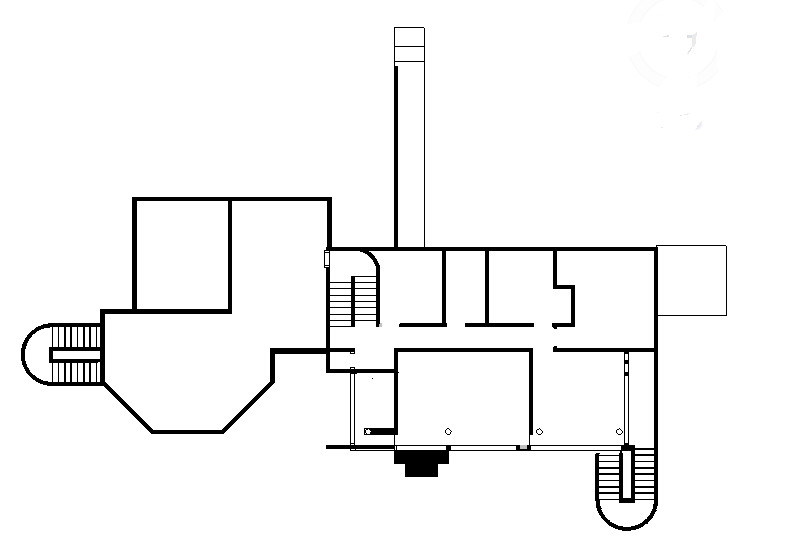

Site Plans



plan 1.png

Lower Level

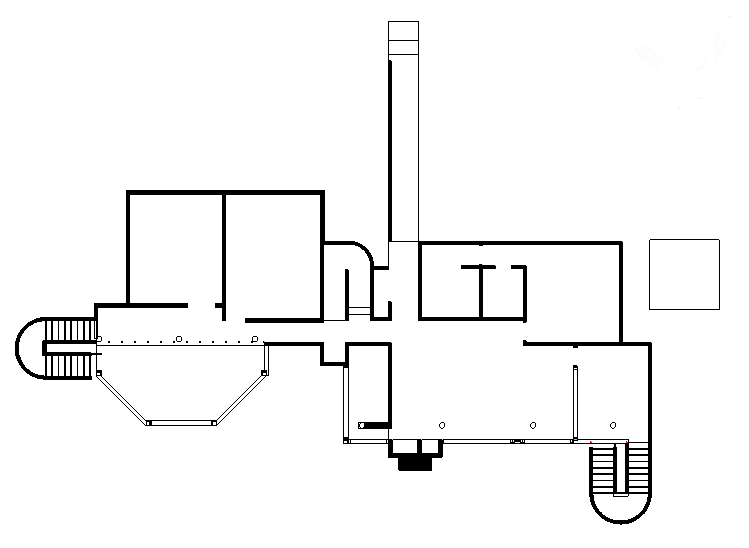

plan 2.png

Entry Level





Upper Level

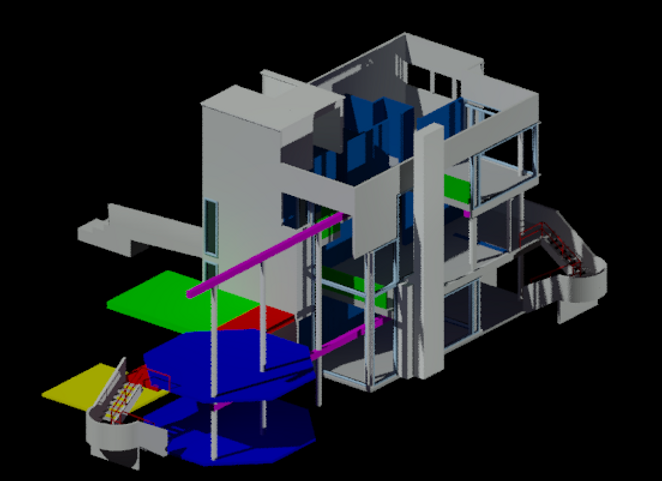

Preliminary Designs



Screenshot 2022-11-21 111130.png
Screenshot 2022-11-21 111533.png

Final Design



Screenshot 2022-11-21 105910.png
Screenshot 2022-11-28 091612.png

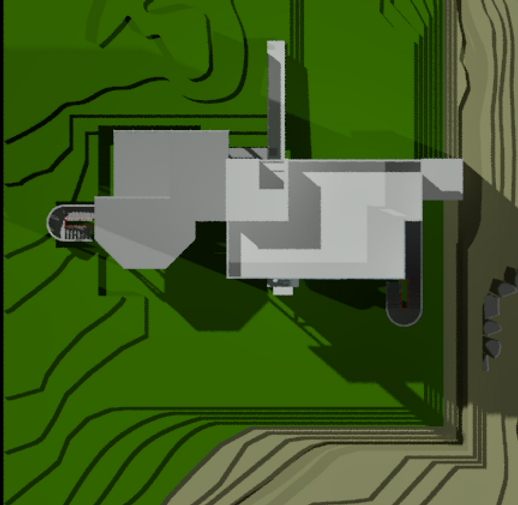

Site Plan



Screenshot 2022-11-28 091001.png

2D Elevations



Elevation S.png

South Elevation

Elevation E.png

East Elevation

Elevation N.png

North Elevation

Elevation W.png

West Elevation

2D Sections




Section 1.png

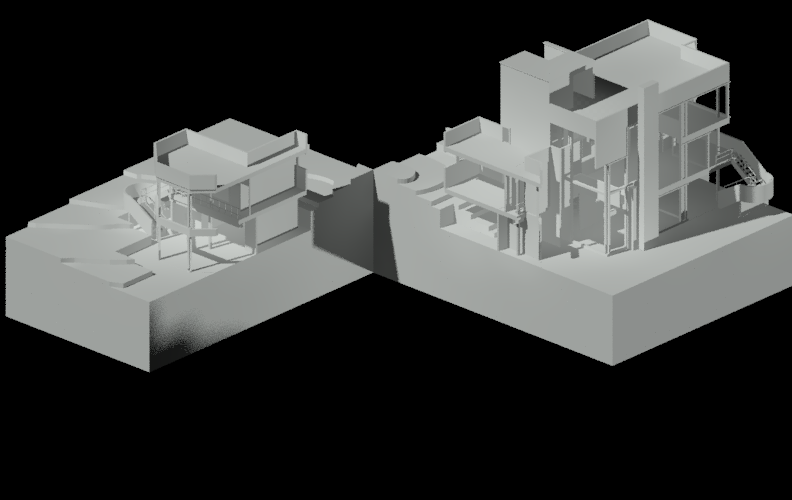

3D Sections




Screenshot 2022-11-28 092649.png
Screenshot 2022-11-28 092836.png
